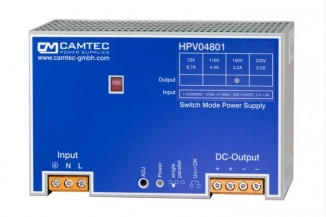

Camtec DIN rail power supply series HPV04801

Switching power supplies in a metal housing (IP20) with 480W, a DC OK signal and protection class I. These devices are suitable for DIN rail mounting (TS35mm) and are protected against overload (auto re...

Camtec DIN rail power supply series HPV04801

Switching power supplies in a metal housing (IP20) with 480W, a DC OK signal and protection class I. These devices are suitable for DIN rail mounting (TS35mm) and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They have a high reliability and comply with EN61010-1, EN62368-1, EN60950-1 as well as EN55032 class B. We offer the following types of this Camtec series: HPV04801.072(R2), HPV04801.110(R2), HPV04801.150(R2) and HPV04801.220(R2).

  • single output
  • output: 480W
  • input voltage: 90 to 264V AC (47 to 63Hz), 250 to 375V DC
  • input current: 4,9A
  • maximal input inrush current: 81A
  • connection type: screw terminal
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2500V AC
  • withstand voltage O/P-FG: 2500V DC
  • operating temperature: -25 to +70°C
  • dimensions: 200x130x115mm
  • weight: 2800g
> More
Data Sheet
