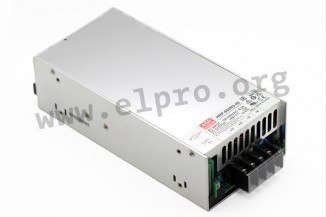

Mean Well power supply series HRP-600N3

Switching power supplies in an enclosed housing with 600W, screw terminals, a universal input and a high efficiency. These devices have a built-in active PFC function and are protected against overload, overtemperature, short circuit as well as overvoltage. They are suitable for a peak power of 300% (5s) and comply with UL62368-1, EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: HRP-600N3-12, HRP-600N3-24, HRP-600N3-36 and HRP-600N3-48

single output
output: 624 to 648W
input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
maximal input inrush current: 70A
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -40 to +70°C
dimensions: 218x105x61,5mm
weight: 1390g
