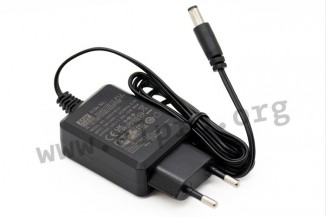

Mean Well plug-in power supply series SGAS15E

Plug-in switching power supplies in a plastic housing with 15W, energy efficiency Level VI, a Europlug, a universal input and protection class II. These devices have a very low no-load power consumption (<0,075W) and are protected against overload, overvoltage as well as short circuit. They have a space-saving design and comply with EN62368-1, EN55032 class B, EN61000-3-2 class A as well as EN61000-3-3. We offer the following types of this Mean Well series: SGAS15E05-P1J, SGAS15E09-P1J, SGAS15E12-P1J, SGAS15E15-P1J and SGAS15E24-P1J.

• single output
• output: 12 to 15W
• input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
• maximal input inrush current: 50A
• no-load power: <0,075W
• input plug: Euro
• output plug: 5,5x2,1mm coaxial connector
• operating temperature: -20 to +70°C
• weight: 130g
