Mean Well DC/AC converter series NTS-1700

Inverters in an enclosed housing with 1700W, a pure sine wave output (THD<3%) and a remote ON/OFF control. These devices have a selectable output voltage and are protected against overload, overtemperat...

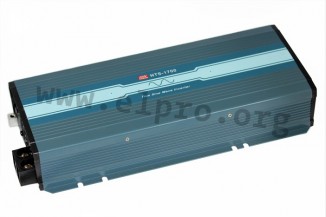

Mean Well DC/AC converter series NTS-1700

Inverters in an enclosed housing with 1700W, a pure sine wave output (THD<3%) and a remote ON/OFF control. These devices have a selectable output voltage and are protected against overload, overtemperature, overvoltage, short circuit as well as reverse polarity. They switch off when a battery is too deeply discharged and comply with EN62368-1, IEC62368-1 as well as EN55032 class A. We offer the following types of this Mean Well series: NTS-1700-212EU, NTS-1700-224EU and NTS-1700-248EU.

  • output: 1700W (up to 2550W for 10sec)
  • selectable output voltage: 200/220/230/240V AC
  • output voltage tolerance: ±3%
  • output frequency: 50/60Hz
  • output frequency tolerance: ±1Hz
  • curve shape: pure sine wave
  • connection type: EU type F
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -25 to +70°C
  • dimensions: 400x184x70mm
  • weight: 4630g
> More
Data Sheet
