Mean Well battery charger series NPB-120

External battery chargers in a compact housing with 120W, a universal input, an LED indicator for charging status, an adjustable charging voltage / charging current, a low no-load power (<0,15W) and term...

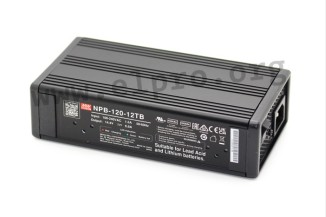

Mean Well battery charger series NPB-120

External battery chargers in a compact housing with 120W, a universal input, an LED indicator for charging status, an adjustable charging voltage / charging current, a low no-load power (<0,15W) and terminal blocks. These devices have a built-in active PFC function and are protected against voltage reversal, overvoltage, short circuit as well as overtemperature. They are suitable for lead-acid as well as Li-ion batteries and comply with EN60335-1/2-29, EN55032 class B, EN55015-1 class B, EN61000-3-2 class A as well as EN61000-3-3. We offer the following types of this Mean Well series: NPB-120-12TB, NPB-120-24TB and NPB-120-48TB as well as the versions NPB-120-12AD1, NPB-120-24AD1 and NPB-120-48AD1 with an Anderson connector and the types NPB-120-12XLR, NPB-120-24XLR and NPB-120-48XLR with an XLR connector.

  • output: 103,4 to 121,6W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • input AC current: 0,8A
  • maximal input inrush current: 55A
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • dimensions: 180x96x49mm
  • weight: 1300g
> More
Data Sheet
