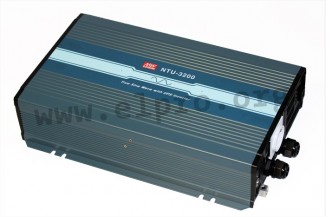

Mean Well DC/AC converter series NTU-3200

Inverters in an enclosed housing with 3200W, a remote ON/OFF control, a built-in UPS function (AC by-pass), an adjustable output voltage and a fan. These devices have a pure sine wave output (THD<3%) an...

Mean Well DC/AC converter series NTU-3200

Inverters in an enclosed housing with 3200W, a remote ON/OFF control, a built-in UPS function (AC by-pass), an adjustable output voltage and a fan. These devices have a pure sine wave output (THD<3%) and are protected against overload, overtemperature, short circuit as well as overvoltage. They are suitable for a peak power of 6400W, for Li-ion as well as lead-acid batteries and comply with EN62368-1 as well as EN55032 class A. We offer the following types of this Mean Well series: NTU-3200-212EU, NTU-3200-224EU and NTU-3200-248EU.

  • output: 3200W (peak power 6400W)
  • selectable output voltage: 200/220/230/240V AC
  • output voltage tolerance: ±3%
  • output frequency: 50/60Hz
  • output frequency tolerance: ±0,1Hz
  • waveform: pure sine wave
  • connection type: EU type F
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -25 to +70°C
  • dimensions: 420x270x98mm
  • weight: 8600g
