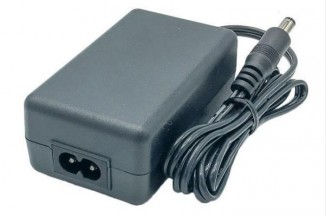

Phihong external power supply series PPL36W

External switching power supplies in a compact housing with 36W, a universal input and protection class II. These devices are protected against overcurrent, overvoltage as well as short circuit and compl...

Phihong external power supply series PPL36W

External switching power supplies in a compact housing with 36W, a universal input and protection class II. These devices are protected against overcurrent, overvoltage as well as short circuit and comply with energy efficiency Level (EU) 2019/1782 + Level VI. We offer the following types of this Phihong series: PPL36W-050, PPL36W-120L6 and PPL36W-240.

  • single output
  • output: 25 to 36W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 70A
  • input plug: IEC-320 C8
  • output plug: 5,5x2,1mm coaxial connector
  • operating temperature: 0 to +40°C
  • dimensions: 99x50x33mm
  • weight: 170g
> More
Data Sheet
