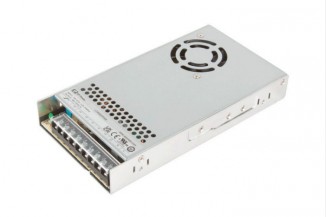

XP Power power supply series LCW320

Switching power supplies in an enclosed housing with 320W, protection class I, a low no-load power and a universal input. These devices have a built-in active PFC function and are protected against overload, overvoltage as well as short circuit. They are fan-cooled and comply with EN62368-1, UL62368-1 as well as EN55032 class B. We offer the following types of this XP Power series: LCW320PS12 and LCW320PS24.

• single output
• output: 320W
• input voltage: 85 to 305V AC (47 to 63Hz)
• input current: 2A
• maximal input inrush current: 65A
• leakage current: 2mA
• no-load power: <0,3W
• withstand voltage I/P-O/P: 4000V AC
• withstand voltage I/P-FG: 2000V AC
• withstand voltage O/P-FG: 500V AC
• connection type: screw terminal
• dimensions: 215x115x30mm
• weight: 750g
