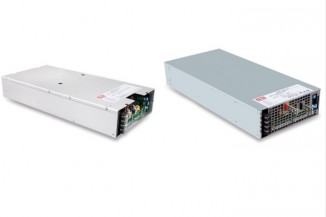

Mean Well power supply series SHP-10K

Switching power supplies in an enclosed housing with 10.000W, a programmable output voltage, a parallel function (up to 4 units / max. 40kW), a built-in remote ON/OFF control, a 3-phase AC input and an auxilia...

Mean Well power supply series SHP-10K

Switching power supplies in an enclosed housing with 10.000W, a programmable output voltage, a parallel function (up to 4 units / max. 40kW), a built-in remote ON/OFF control, a 3-phase AC input and an auxiliary power. These devices have a built-in active PFC function and are protected against overload, fan fail, overvoltage, overtemperature as well as short circuit. They are air-cooled (SHP-10K_) or water-cooled (SHP-10K-_L), have a CAN bus interface and comply with EN62368-1, EN55032 class A, EN55032 class B, EN55011 class A as well as EN55011 class B. We offer the following types of this Mean Well series: SHP-10K-55, SHP-10K-55L, SHP-10K-115, SHP-10K-115L, SHP-10K-230, SHP-10K-230L, SHP-10K-380, SHP-10K-380L and the cooling plate HS-684.

  • single output
  • output: 7200 to 10.000W
  • input voltage: 340 to 530V AC (47 to 63Hz)
  • input inrush current: 40A
  • leakage current: <6,5mA
  • overload protection: 100 to 105%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand votlage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1250V AC
  • operating temperature: -30 to +70°C
  • weight: 11,9kg
> More
Data Sheet
Showing 1 - 9 of 9 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    SHP-10K-55, Mean Well switching power supplies, 10000W, parallel function, SHP-10K series
    2.698,79 €
    242172 SHP-10K-55 SHP-10K-55
    2.698,79 €
    Quantity Unit price
    50 + 2.675,79 €
    Stock: 3
  • Mean Well
    SHP-10K-55L, Mean Well switching power supplies, 10000W, parallel function, SHP-10K series
    2.698,79 €
    242173 SHP-10K-55L SHP-10K-55L
    2.698,79 €
    Quantity Unit price
    50 + 2.675,79 €
    Stock: 4
  • Mean Well
    SHP-10K-115, Mean Well switching power supplies, 10000W, parallel function, SHP-10K series
    2.698,79 €
    242174 SHP-10K-115 SHP-10K-115
    2.698,79 €
    Quantity Unit price
    50 + 2.675,79 €
    Stock: 4
  • Mean Well
    SHP-10K-115L, Mean Well switching power supplies, 10000W, parallel function, SHP-10K series
    2.698,79 €
    242175 SHP-10K-115L SHP-10K-115L
    2.698,79 €
    Quantity Unit price
    50 + 2.675,79 €
    Stock: 4
  • Mean Well
    SHP-10K-230, Mean Well switching power supplies, 10000W, parallel function, SHP-10K series
    2.698,79 €
    242176 SHP-10K-230 SHP-10K-230
    2.698,79 €
    Quantity Unit price
    50 + 2.675,79 €
    Stock: 3
  • Mean Well
    SHP-10K-230L, Mean Well switching power supplies, 10000W, parallel function, SHP-10K series
    2.698,79 €
    242177 SHP-10K-230L SHP-10K-230L
    2.698,79 €
    Quantity Unit price
    50 + 2.675,79 €
    Stock: 4
  • Mean Well
    SHP-10K-380, Mean Well switching power supplies, 10000W, parallel function, SHP-10K series
    2.698,79 €
    242178 SHP-10K-380 SHP-10K-380
    2.698,79 €
    Quantity Unit price
    50 + 2.675,79 €
    Stock: 5
  • Mean Well
    SHP-10K-380L, Mean Well switching power supplies, 10000W, parallel function, SHP-10K series
    2.698,79 €
    242179 SHP-10K-380L SHP-10K-380L
    2.698,79 €
    Quantity Unit price
    50 + 2.675,79 €
    Stock: 4
  • Mean Well
    HS-684, Mean Well switching power supplies, 10000W, parallel function, SHP-10K series
    327,89 €
    242960 HS-684 HS-684
    327,89 €
    Stock: 4
Showing 1 - 9 of 9 products
