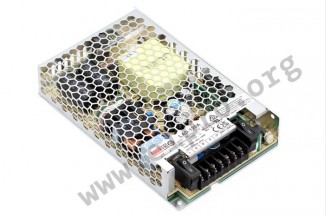

Mean Well battery charger series LAD-120

Switching power supplies in an enclosed housing with 120W, a built-in battery charger (UPS function), two output channels and a universal input. These devices are suitable for lead-acid as well as Li-ion batteries and are protected against overload, overvoltage, voltage reversal, overtemperature as well as short circuit. They have an adjustable output voltage for CH1 (-20%,~+5%) and comply with EN62368-1 as well as EN55032 class A. We offer the following types of this Mean Well series: LAD-120A, LAD-120B, LAD-120C and LAD-120D.

dual output
output: 120 to 121,99W
input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
maximal input inrush current: 55A
leakage current: <0,5mA
overload protection: 105 to 135%
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -20 to +60°C
dimensions: 159x97x30mm
weight: 420g
