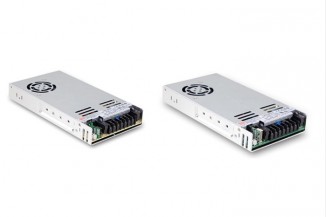

Mean Well battery charger series LAD-360

Switching power supplies in an enclosed housing with 360W, screw terminals, two output channels, a built-in battery charger (UPS function) and a universal input. These devices have an adjustable output voltage for CH1 (-20/+5%), are suitable for lead-acid as well as Li-ion batteries and are protected against overload, overvoltage, voltage reversal, short circuit as well as overtemperature. They have TTL (LAD-360_) resp. UART signals (LAD-360_U) for status detection and comply with EN62368-1 as well as EN55032 class A. We offer the following types of this Mean Well series: LAD-360B, LAD-360BU, LAD-360C, LAD-360CU, LAD-360D and LAD-360DU.

• dual output
• output: 358,56 to 360,46W
• input voltage: 90 to 132V AC / 180 to 264V AC (47 to 63Hz), 240 to 370V DC
• maximal input inrush current: 60A
• leakage current: <0,5mA
• overload protection: 105 to 135%
• withstand voltage I/P-O/P: 3000V AC
• withstand voltage I/P-FG: 2000V AC
• withstand voltage O/P-FG: 500V AC
• operating temperature: -20 to +60°C
• dimensions: 215x115x30mm
• weight: 750g
