Yingjiao plug-in power supply series YS12V

Plug-in switching power supplies in a compact housing with 10 to 12W, a universal input, a Europlug, protection class II and energy efficiency Level VI. These devices are inexpensive and are protected aga...

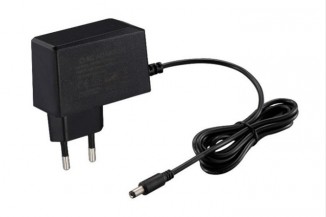

Yingjiao plug-in power supply series YS12V

Plug-in switching power supplies in a compact housing with 10 to 12W, a universal input, a Europlug, protection class II and energy efficiency Level VI. These devices are inexpensive and are protected against overload, short circuit as well as overvoltage. They have a very low leakage current (<0,25mA) and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Yingjiao series: YS12V-0502000E, YS12V-1201000E and YS12V-2400500E.

  • single output
  • output: 10 to 12W
  • input voltage: 90 to 264V AC (50 to 60Hz)
  • maximal input inrush current: 50A
  • input current: 0,4A
  • input plug: Euro
  • output plug: 5,5x2,1mm coaxial connector
  • operating temperature: -20 to +60°C
  • dimensions: 68x30x37mm
  • weight: 85g
> More
Data Sheet
