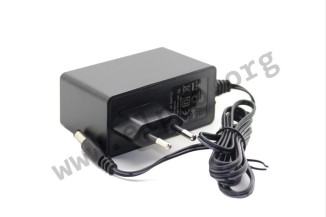

Yingjiao plug-in power supply series YS18V

Plug-in switching power supplies with 17,5 to 24W, a universal input, a Europlug, energy efficiency Level VI and protection class II. These devices have an extremely low leakage current (<0,25mA) and a...

Yingjiao plug-in power supply series YS18V

Plug-in switching power supplies with 17,5 to 24W, a universal input, a Europlug, energy efficiency Level VI and protection class II. These devices have an extremely low leakage current (<0,25mA) and are protected against overload, short circuit as well as overvoltage. They are inexpensive and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Yingjiao series: YS18V-0503500, YS18V-1202000 and YS18V-2401000.

  • single output
  • output: 17,5 to 24W
  • input voltage: 90 to 264V AC (50 to 60Hz)
  • maximal input inrush current: 65A
  • input plug: Europlug
  • output plug: 5,5x2,1mm coaxial connector
  • operating temperature: -20 to +60°C
  • dimensions: 78x36x83mm
  • weight: 130g
> More
Data Sheet
