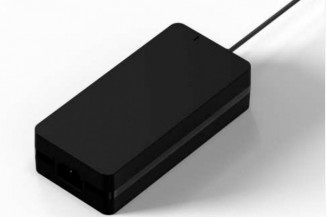

HN-Power external power supply series HNP180U

Desktop switching power supplies in a compact housing with 180W, a universal input, energy efficiency Level VI and protection class I. These devices have a low no-load power and are protected against o...

HN-Power external power supply series HNP180U

Desktop switching power supplies in a compact housing with 180W, a universal input, energy efficiency Level VI and protection class I. These devices have a low no-load power and are protected against overload, short circuit as well as overvoltage. They are suitable for indoor applications and comply with EN55032 class B as well as EN62368-1. We offer the following types of this HN-Power series: HNP180U-120, HNP180U-240 and HNP180U-480.

  • single output
  • output: 102 to 180W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 100A
  • input current: 2,5A
  • leakage current: 2,5mA
  • withstand voltage: 4000V AC
  • input plug: IEC-320 C14
  • cable length: 150cm
  • operating temperature: -10 to +40°C
  • dimensions: 164x80x42,5mm
  • weight: 624g
> More
Data Sheet
