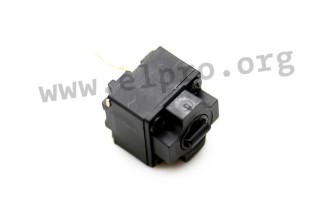

Panasonic switch series EVQP0

Tactile switches with an operating force of 0,74N (EVQP0D07K) resp. 1,3N (EVQP0E07K) and external dimensions of 6,2x6,2mm. These devices have a height of 7,45mm and are suitable for PCB mounting. They are comfortable ...

Panasonic switch series EVQP0

Tactile switches with an operating force of 0,74N (EVQP0D07K) resp. 1,3N (EVQP0E07K) and external dimensions of 6,2x6,2mm. These devices have a height of 7,45mm and are suitable for PCB mounting. They are comfortable for a long-time operation due to over-travel and have an excellent light-touch operational feel. We offer the following types of this Panasonic series: EVQP0D07K and EVQP0E07K.

  • dimensions: 6,2x6,2x7,45mm
  • operating force: 0,74 resp. 1,3N
  • rated voltage: 2 to 30V DC
  • rated current: 10µA to 50mA

> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • Panasonic
    EVQP0D07K, Panasonic tact switches, 6,2x6,2mm, 0,74N/1,3N, EVQP0 series
    0,221 €
    242518 EVQP0D07K EVQP0D07K
    0,221 €

    More
    Stock: 100
  • Panasonic
    EVQP0E07K, Panasonic tact switches, 6,2x6,2mm, 0,74N/1,3N, EVQP0 series
    0,221 €
    242519 EVQP0E07K EVQP0E07K
    0,221 €

    More
    Stock: 50
