Dlacnet PWM dimmer series DLD

PWM dimming controllers in a plastic housing (IP10) with 960W, a constant voltage (DLD1248-4CV_) resp. a constant current (DLD1248-4CC_), an optimized output curve, a soft on/off switching and 4 output channels. These...

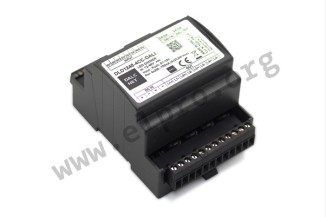

Dlacnet PWM dimmer series DLD

PWM dimming controllers in a plastic housing (IP10) with 960W, a constant voltage (DLD1248-4CV_) resp. a constant current (DLD1248-4CC_), an optimized output curve, a soft on/off switching and 4 output channels. These devices are suitable for DIN rail mounting, have a 3 in 1 dimming function (0 to 10V / 10kOhm potentiometer / push-button) as well as a DALI (DLD1248_-DALI) resp. a DMX interface (DLD1248_-DMX) and comply with EN55015 as well as EN61347-1. They are dimmable from 0,1 to 100%, have an adjustable PWM frequency from 300 to 1200Hz and can adjust both colour temperature (CCT) and colour (RGB/RGBW). We offer the following types of this Dalcnet series: DLD1248-4CV-DALI, DLD1248-4CV-DMX, DLD1248-4CC-DALI and DLD1248-4CC-DMX.

  • 4 channel output
  • output: 134,4 to 960W
  • input voltage: 12 to 48V DC
  • operating temperature: -40 to +60°C
  • dimensions: 72x92x62mm
  • weight: 125g
