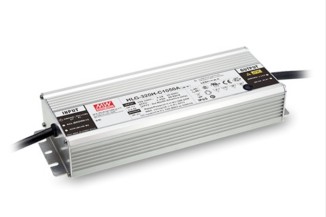

Mean Well LED driver series HLG-320H-C

LED drivers in a metal housing (IP67) with 320W, a universal input, a DALI interface and a constant current. These devices have a built-in active PFC function, are dimmable and are protected against overload (auto recovery), overvoltage, short circuit as well as overtemperature. They are suitable for LED lighting applications, have a service life of more than 62.000 hours and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. We offer the following types of this Mean Well series: HLG-320H-C700DA, HLG-320H-C1050DA, HLG-320H-C1400DA, HLG-320H-C1750DA, HLG-320H-C2100DA, HLG-320H-C2800DA and HLG-320H-C3500DA.

single output
output: 299,6 to 320,6W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
maximal input inrush current: 70A
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +85°C
dimensions: 252x90x43,8mm
weight: 1880g
