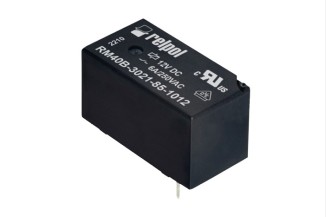

Relpol PCB relay series RM40B

Relays in a 20x10x10,6mm housing with 6A and 1 changeover contact. These components have a low coil power (0,2W) and are suitable for PCB mounting. They are suitable for high loads of up to 10A / 120V AC and comply wi...

Relpol PCB relay series RM40B

Relays in a 20x10x10,6mm housing with 6A and 1 changeover contact. These components have a low coil power (0,2W) and are suitable for PCB mounting. They are suitable for high loads of up to 10A / 120V AC and comply with insulation class F (155°C), protection type IP50 as well as relay protection class RTIII (EN60810-7). We offer the following types of this Relpol series: RM40B-2011-85-1012 and RM40B-2011-85-1024.

  • rated current: 6A
  • rated voltage: 250V AC
  • contact: SPST
  • maximal switching current: 8A
  • operating temperature: -40 to +85°C
  • weight: 4,6g
> More
Data Sheet
