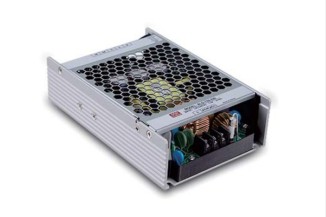

Mean Well variable frequency drive series VFD-750C-230

Variable frequency drives in an enclosed housing with 750W and a peak power capability of up to 200%. These devices have a built-in active PFC function, can be controlled with an external PWM ...

Mean Well variable frequency drive series VFD-750C-230

Variable frequency drives in an enclosed housing with 750W and a peak power capability of up to 200%. These devices have a built-in active PFC function, can be controlled with an external PWM signal and are protected against short circuit. They have sensors for monitoring bus voltage, current as well as temperature, are suitable for 3-phase motors and comply with EN61800-5-1 as well as EN61800-3 class A. We offer the type VFD-750C-230 of this Mean Well series.

  • output: 750W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 50A
  • leakage current: <2mA
  • operating temperature: -30 to +60°C
  • dimensions: 150x100x41mm
  • weight: 0,8kg
> More
Data Sheet
Showing 1 - 1 of 1 product
  • Product Stock Unit price Volume discounts
  • Mean Well
    VFD-750C-230, Mean Well variable frequency drives, 750W, enclosed, VFD-750C-230 series
    73,69 €
    244431 VFD-750C-230 VFD-750C-230
    73,69 €
    Quantity Unit price
    50 + 71,19 €

    More
    Stock: 9
Showing 1 - 1 of 1 product
