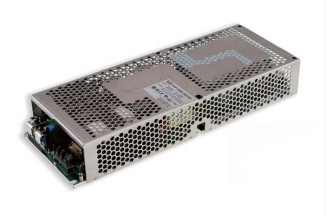

Mean Well power supply series PHP-3500

Switching power supplies in a U-bracket housing with 3500W, a universal input, a CAN bus interface and a remote ON/OFF control. These devices have a built-in active PFC function and are protected against over...

Mean Well power supply series PHP-3500

Switching power supplies in a U-bracket housing with 3500W, a universal input, a CAN bus interface and a remote ON/OFF control. These devices have a built-in active PFC function and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a fanless design and comply with EN62368-1, EN55032/EN55011 class B as well as EN55032/EN55011 class A. We offer the following types of this Mean Well series: PHP-3500-24CAN and PHP-3500-48CAN.

  • single output
  • output: 3480 to 3504W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 80A
  • leakage current: <2mA
  • overload protection: 105 to 115%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1250V AC
  • operating temperature: -40 to +85°C
  • dimensions: 380x141,4x60mm
  • weight: 4500g
> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    PHP-3500-24CAN, Mean Well switching power supplies, 3500W, U-bracket, CAN bus, PFC, PHP-3500 series
    1.006,59 €
    244499 PHP-3500-24CAN PHP-3500-24CAN
    1.006,59 €

    More
    Stock: 0
  • Mean Well
    PHP-3500-48CAN, Mean Well switching power supplies, 3500W, U-bracket, CAN bus, PFC, PHP-3500 series
    1.006,59 €
    244500 PHP-3500-48CAN PHP-3500-48CAN
    1.006,59 €

    More
    Stock: 0
