Mean Well power supply series PHP-3500-HV

Switching power supplies in a U-bracket housing with 3500W, a universal input, a CAN bus interface and a high voltage output. These devices have a built-in active PFC function and are protected against ove...

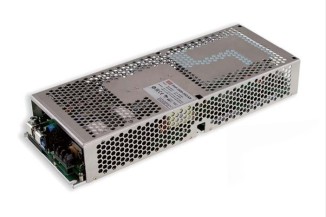

Mean Well power supply series PHP-3500-HV

Switching power supplies in a U-bracket housing with 3500W, a universal input, a CAN bus interface and a high voltage output. These devices have a built-in active PFC function and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a fanless design and comply with EN62368-1. We offer the following types of this Mean Well series: PHP-3500-115CAN, PHP-3500-230CAN and PHP-3500-380CAN.

  • single output
  • output: 3500W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 80A
  • leakage current: <2mA
  • withstand voltage I/P-O/P: 6000V DC
  • withstand voltage I/P-FG: 4000V DC
  • withstand voltage O/P-FG: 4000V DC
  • operating temperature: -30 to +70°C
  • dimensions: 380x141,4x60mm
  • weight: 4500g
> More
Data Sheet
