Mean Well LED driver series XLG-75

LED drivers in a metal housing (IP67) with 75W, a constant power (XLG-75-L/XLG-75-H), a constant current/voltage (XLG-75-12/XLG-75-24) and a universal input. These devices have a built-in active PFC function and ...

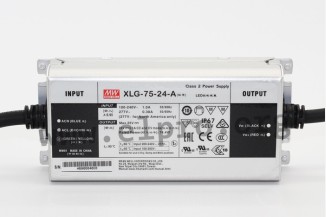

Mean Well LED driver series XLG-75

LED drivers in a metal housing (IP67) with 75W, a constant power (XLG-75-L/XLG-75-H), a constant current/voltage (XLG-75-12/XLG-75-24) and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, overcurrent, overtemperature as well as short circuit. They are suitable for LED lighting applications, are not dimmable and comply with EN61347-1, EN61347-2-13, EN623684, EN60335-1, EN61547, EN55015 as well as EN61000-3-3. We offer the following types of this Mean Well series: XLG-75-12, XLG-75-24, XLG-75-L and XLG-75-H.

  • single output
  • output: 60 to 75W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 4200V AC
  • withstand voltage I/P-FG: 2100V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 140x63x32mm
  • weight: 580g
> More
Data Sheet
