Mean Well LED driver series HLG-240H

LED drivers in a metal housing with 240W, a universal input and a constant current/voltage. These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), o...

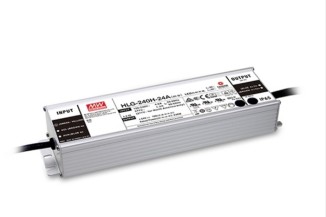

Mean Well LED driver series HLG-240H

LED drivers in a metal housing with 240W, a universal input and a constant current/voltage. These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They are suitable for LED lighting applications, are not dimmable and comply with EN61347-1, EN61347-2-13, EN55015, EN61547 as well as EN61000-3-3. We offer the following types of this Mean Well series: HLG-240H-12C, HLG-240H-15C, HLG-240H-20C, HLG-240H-24C, HLG-240H-30C, HLG-240H-36C, HLG-240H-42C, HLG-240H-48C and HLG-240H-54C.

  • single output
  • output: 192 to 241,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 75A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 251x68x38,8mm
  • weight: 1300g
