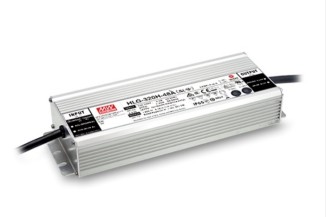

Mean Well LED driver series HLG-320H

LED drivers in a metal housing with 320W, terminal blocks and a constant current/voltage. These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, short circuit as well as overtemperature. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61547, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: HLG-320H-12C, HLG-320H-15C, HLG-320H-20C, HLG-320H-24C, HLG-320H-30C, HLG-320H-36C, HLG-320H-42C, HLG-320H-48C and HLG-320H-54C.

  • single output
  • output: 264 to 321,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 252x0x43,8mm
  • weight: 1880g
