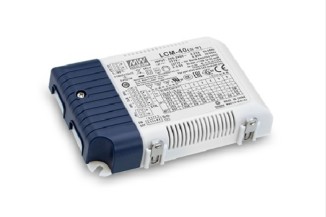

Mean Well LED driver series LCM-40 IoT

LED drivers in a plastic housing with 40W, a constant current (selectable via DIL switch), protection class II and an auxiliary output (LCM-40_-AUX). These devices have a built-in active PFC function, are sui...

Mean Well LED driver series LCM-40 IoT

LED drivers in a plastic housing with 40W, a constant current (selectable via DIL switch), protection class II and an auxiliary output (LCM-40_-AUX). These devices have a built-in active PFC function, are suitable for LED lighting applications and are protected against overload (auto recovery), short circuit, overvoltage as well as overtemperature. They have a Casambi (LCM-40BLE_), Tuya (LCM-40TY1_) or Silvair bluetooth interface (LCM-40SVA) and comply with EN61347-2-13, EN61347-1 as well as EN55015. We offer the following types of this Mean Well series: LCM-40TY1, LCM-40SVA, LCM-40BLE-AUX, LCM-40TY1-AUX and LCM-40SVA-AUX.

  • single output
  • output: 42W
  • input voltage: 180 to 295V AC (47 to 63Hz), 254 to 417V DC
  • maximal input inrush current: 20A
  • leakage current: 0,5mA
  • withstand voltage I/P-O/P: 3750V AC
  • dimensions: 105x68x23mm
  • weight: 240g
> More
Data Sheet
