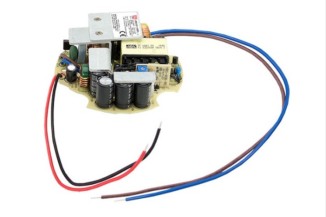

Mean Well LED driver series HBG-60-P

Open-frame LED drivers with 60W, a round shape and a constant current. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit....

Mean Well LED driver series HBG-60-P

Open-frame LED drivers with 60W, a round shape and a constant current. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for LED lighting applications, are not dimmable and comply with EN61347-1, EN61347-2-13, EN61000-3-2 class C as well as EN55015. We offer the following types of this Mean Well series: HBG-60-1050P, HBG-60-1400P and HBG-60-2100P.

  • single output
  • output: 57,75 to 60,9W
  • input voltage: 90 to 295V AC (47 to 63Hz), 127 to 417V DC
  • maximal input inrush current: 45A
  • withstand voltage I/P-O/P: 3750V AC
  • oiperating temperature: -40 to +70°C
  • dimensions: Ø99x66,5mm
  • weight: 210g
> More
Data Sheet
