Mean Well charger series ENP-360

Desktop switching power supplies in a compact housing (7" width) with 360W, a universal input, energy efficiency Level VI and a very low no load power. These devices have a built-in active PFc function and comply w...

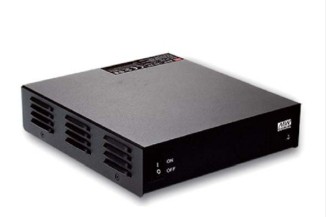

Mean Well charger series ENP-360

Desktop switching power supplies in a compact housing (7" width) with 360W, a universal input, energy efficiency Level VI and a very low no load power. These devices have a built-in active PFc function and comply with EN62368-1 as well as EN55032 class B. They have a fanless design, a peak load capability of up to 125% and are protected against overload, short circuit as well as overvoltage. We offer the following types of this Mean Well series: ENP-360-12, ENP-360-24 and ENP-360-48.

  • single output
  • output: 359W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 60A
  • no-load power: <0,5W
  • leakage current: <3,5mA
  • overload protection: 110 to 125%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 1500g
> More
Data Sheet
