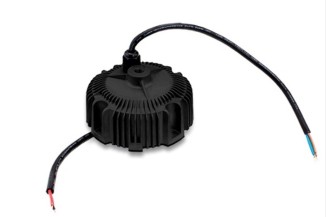

Mean Well LED driver series HBG-100

LED drivers in a circular metal housing with 100W, a constant current, a SELV output and a 3 in 1 dimming function. These devices have a built-in active PFC function and are protected against overload, overtempe...

Mean Well LED driver series HBG-100

LED drivers in a circular metal housing with 100W, a constant current, a SELV output and a 3 in 1 dimming function. These devices have a built-in active PFC function and are protected against overload, overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting applications, have an adjustable current limiting and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. We offer the following types of this Mean Well series: HBG-100-24AB, HBG-100-36AB, HBG-100-48AB and HBG-100-60AB.

  • single output
  • output: 96 to 97,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +85°C
  • dimensions: Ø130x66,5mm
  • weight: 1180g
> More
Data Sheet
