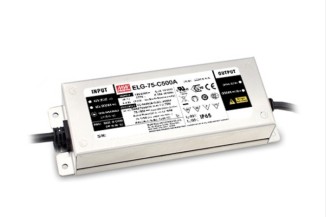

Mean Well LED driver series ELG-75-C

LED drivers in a metal housing (IP65) with 75W, a constant current, a 3 in 1 dimming function nad a protective earth conductor. These devices have a built-in active PFC function and are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage. They are suitable for LED lighting applications, have a potentiometer for adjusting the current limitation and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. We offer the following types of this Mean Well series: ELG-75-C350AB-3Y, ELG-75-C500AB-3Y, ELG-75-C700AB-3Y, ELG-75-C1050AB-3Y and ELG-75-C1400AB-3Y.

  • single output
  • output: 74,55 to 75,6W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: 180x63x35,5mm
  • weight: 800g
