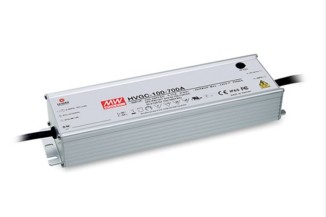

Mean Well LED driver series HVGC-100

LED drivers in a metal housing (IP65) with 100W, a constant current, a 3 in 1 dimming function and a potentiometer for adjusting the current limitation. These devices have a built-in active PFC function and are...

Mean Well LED driver series HVGC-100

LED drivers in a metal housing (IP65) with 100W, a constant current, a 3 in 1 dimming function and a potentiometer for adjusting the current limitation. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. We offer the following types of this Mean Well series: HVGC-100-350AB and HVGC-100-700AB.

  • single output
  • output: 99,4 to 99,75W
  • input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC
  • maximal input inrush current: 25A (480V AC)
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 236x68x38,8mm
  • weight: 1180g
> More
Data Sheet
