Mean Well LED driver series HVGC-240

LED drivers in a metal housing (IP65) with 240W, a constant current and a potentiometer for adjusting the current limitation. These devices have a built-in active PFC function and are protected against overload...

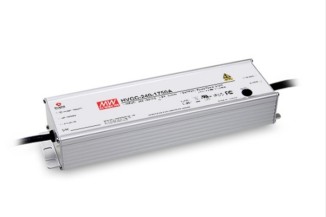

Mean Well LED driver series HVGC-240

LED drivers in a metal housing (IP65) with 240W, a constant current and a potentiometer for adjusting the current limitation. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN61547, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: HVGC-240-700A, HVGC-240-1050A, HVGC-240-1400A, HVGC-240-1750A, HVGC-240-2100A, HVGC-240-2800A and HVGC-240-3500A.

  • single output
  • output: 240 to 240,1W
  • input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC
  • maximal input inrush current: 50A (480V)
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 254,2x68x38,8mm
  • weight: 1350g
