Mean Well LED driver series XLC-40

LED drivers in a plastic housing with 40W, a dimming function, a constant power, an NFC function (XLN-40-H-_N), a low no-load power (<0,5W), a strain relief (XLC-40-H-BS_) and an adjustable output current. The...

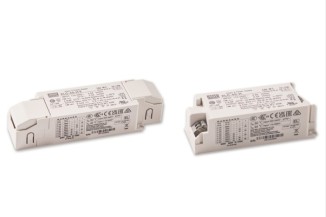

Mean Well LED driver series XLC-40

LED drivers in a plastic housing with 40W, a dimming function, a constant power, an NFC function (XLN-40-H-_N), a low no-load power (<0,5W), a strain relief (XLC-40-H-BS_) and an adjustable output current. These devices have a built-in active PFC function and are protected against overtemperature as well as short circuit. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN62384. We offer the following types of this Mean Well series: XLC-40-H-B, XLC-40-H-BN, XLC-40-H-BS and XLC-40-H-BSN.

  • single output
  • output: 40W
  • input voltage: 100 to 305V AC (47 to 63Hz), 141 to 431V DC
  • maximal input inrush current: 10A
  • leakage current: <0,75mA
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -25 to +90°C
> More
Data Sheet
Showing 1 - 4 of 4 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    XLC-40-H-B, Mean Well LED drivers, 40W, constant power/voltage, dimmable, adjustable, XLC-40 series
    19,59 €
    245548 XLC-40-H-B XLC-40-H-B
    19,59 €
    Quantity Unit price
    50 + 18,29 €
    Stock: 29
  • Mean Well
    XLC-40-H-BN, Mean Well LED drivers, 40W, constant power/voltage, dimmable, adjustable, XLC-40 series
    19,59 €
    245549 XLC-40-H-BN XLC-40-H-BN
    19,59 €
    Quantity Unit price
    50 + 18,29 €
    Stock: 20
  • Mean Well
    XLC-40-H-BS, Mean Well LED drivers, 40W, constant power/voltage, dimmable, adjustable, XLC-40 series
    20,49 €
    245550 XLC-40-H-BS XLC-40-H-BS
    20,49 €
    Quantity Unit price
    50 + 18,99 €
    Stock: 25
  • Mean Well
    XLC-40-H-BSN, Mean Well LED drivers, 40W, constant power/voltage, dimmable, adjustable, XLC-40 series
    20,49 €
    245551 XLC-40-H-BSN XLC-40-H-BSN
    20,49 €
    Quantity Unit price
    50 + 18,99 €
    Stock: 18
Showing 1 - 4 of 4 products
