Everlight IR-LED series IR

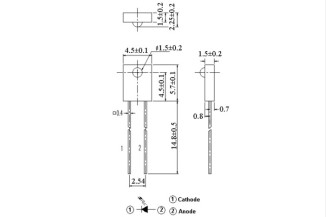

Infrared LEDs in a rectangular 4,5x5,7mm housing with 940nm and a pitch of 2,54mm. These IR LEDs have a low forward voltage and are suitable for PCB mounting. We offer the type IR908-7C of this Everlight series.

  • power di...

Everlight IR-LED series IR

Infrared LEDs in a rectangular 4,5x5,7mm housing with 940nm and a pitch of 2,54mm. These IR LEDs have a low forward voltage and are suitable for PCB mounting. We offer the type IR908-7C of this Everlight series.

  • power dissipation: 75mW
  • forward current: 50mA (continuous)
  • reverse voltage: 5V
  • operating temperature: -40 to +85°C
> More
Data Sheet
Showing 1 - 1 of 1 product
  • Product Stock Unit price Volume discounts
  • Everlight
    IR908-7C, Everlight IR-LEDs, side view, IR series
    0,11 €
    245643 IR 908-7 C IR908-7C IR908-7C
    0,11 €

    More
    Stock: 16
