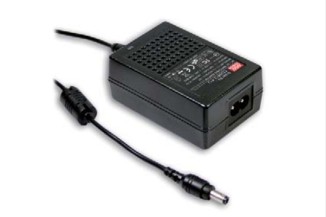

Mean Well desktop power supply series GSM25B

External switching power supplies in a plastic housing (UL94V-0) with 25W, a 2-pole AC inlet (IEC320-C8), protection class II, energy efficiency Level VI and a low no-load power (<0,1W). These device...

Mean Well desktop power supply series GSM25B

External switching power supplies in a plastic housing (UL94V-0) with 25W, a 2-pole AC inlet (IEC320-C8), protection class II, energy efficiency Level VI and a low no-load power (<0,1W). These devices are suitable for medical technology applications (2xMOPP) and comply with EN60601-1, EN60601-11, EN62368-1 as well as EN55011 class B. They have an LED indicator for power on and are protected against overload, short circuit as well as overvoltage. We offer the following types of this Mean Well series: GSM25B12-P1J and GSM25B24-P1J.

  • single output
  • output: 25W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 55A
  • leakage current: <50µA
  • overload protection: 105 to 170%
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -25 to +60°C
  • dimensions: 79x54x33mm
  • weight: 235g
> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    GSM25B12-P1J, Mean Well external switching power supplies, 25W, for medical technology, energy efficiency Level VI, GSM25B serie
    14,09 €
    245844 GSM25B12-P1J GSM25B12-P1J
    14,09 €
    Quantity Unit price
    50 + 13,09 €

    More
    Stock: 0
  • Mean Well
    GSM25B24-P1J, Mean Well external switching power supplies, 25W, for medical technology, energy efficiency Level VI, GSM25B serie
    14,09 €
    245845 GSM25B24-P1J GSM25B24-P1J
    14,09 €
    Quantity Unit price
    50 + 13,09 €

    More
    Stock: 0
Showing 1 - 2 of 2 products
