Zettler PCB relays series AZ160

Mini PCB relays with a switching power of 60A and a 30,4x15,9x25,15mm housing. These devices have a high disructive strength of 4,5kVRMS and a withstanding voltage resistance of 10kV. They have a compact size and c...

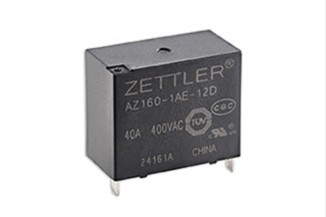

Zettler PCB relays series AZ160

Mini PCB relays with a switching power of 60A and a 30,4x15,9x25,15mm housing. These devices have a high disructive strength of 4,5kVRMS and a withstanding voltage resistance of 10kV. They have a compact size and conform with isolation system class F. We offer the following types of this Zettler series: AZ160-1AE-12D, AZ160-1AE-12DE, AZ160-1AE-24D, and AZ160-1AE-24DE.

  • connection: 1x normally open contact
  • connection material: AgSnO2
  • nominal switching power: 60A
  • nominal voltage: 480V AC
  • switching power: 28800VA
  • reaction-/drop off time, min.: 20/10ms
  • test voltage: 4500VRMS (inductor/contact), 1700VRMS (open contact)
  • lifetime, mech.: 10^6 cycles
  • operating temperature: -40 to +85°C
  • soldering temperature, max.: 260°C (5s)
  • weight: 25g
