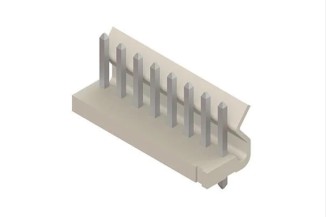

MPE Garry pin header series 578

Straight male headers with tinned brass contacts. These pin strips have an insulator made of polyamide 6.6 (UL94V-2) and have a pitch of 3,96mm. They are suitable for 250VRMS/V DC as well as 5A. We offer the followi...

MPE Garry pin header series 578

Straight male headers with tinned brass contacts. These pin strips have an insulator made of polyamide 6.6 (UL94V-2) and have a pitch of 3,96mm. They are suitable for 250VRMS/V DC as well as 5A. We offer the following types of this MPE Garry series: 578-1-002-0-T-BS0, 578-1-003-0-T-BS0, 578-1-004-0-T-BS0, 578-1-005-0-T-BS0, 578-1-006-0-T-BS0, and 578-1-008-0-T-BS0.

  • pitch: 3,96mm
  • number of poles: 2 to 8
  • rated voltage: 250V RMS / V DC
  • rated current: 5A
  • dielectric strength (1min): 1500VRMS
  • operating temperature: -25 to +85°C
