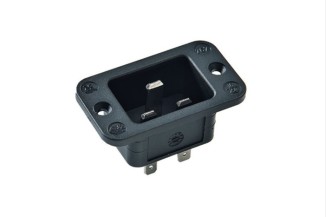

Kaiser Built-in cold appliance plug series 767

Built-in cold appliance plugs made of Polyamid (PA) 6 and with snap-in or screw (767/SW) fastening. These black plugs have a brass input and a straight alignment. We offer the following types of this ...

Kaiser Built-in cold appliance plug series 767

Built-in cold appliance plugs made of Polyamid (PA) 6 and with snap-in or screw (767/SW) fastening. These black plugs have a brass input and a straight alignment. We offer the following types of this Kaiser series: 767/48/SW, 767/63/SW, and 767/SW.

  • rated voltage: 250V AC
  • rated current: 16A
  • dimensions: 52x33,3x30mm
  • weight: 12g, resp. 18g (767/SW)
  • faston terminal: 6,3mm (767/63/SW) or 4,8mm (767/48/SW)
  • operating temperature: -5 to 40°C
> More
Data Sheet
Showing 1 - 3 of 3 products
  • Product Stock Unit price Volume discounts
  • Kaiser
    767/48/SW, Kaiser Built-in cold appliance plug, 40°C, straight, 767 series
    1,83 €
    253688 767_48_sw 767/48/SW 767/48/SW
    1,83 €

    More
    Stock: 50
  • Kaiser
    767/63/SW, Kaiser Built-in cold appliance plug, 40°C, straight, 767 series
    1,83 €
    253689 767_63_sw 767/63/SW 767/63/SW
    1,83 €

    More
    Stock: 50
  • Kaiser
    767/SW, Kaiser Built-in cold appliance plug, 40°C, straight, 767 series
    2,29 €
    253690 767_sw 767/SW 767/SW
    2,29 €

    More
    Stock: 25
Showing 1 - 3 of 3 products
