Mean Well charger series GC30E

Desktop type battery chargers in a plastic housing with 30W, protection class II, a universal input, a 2 color LED indicator and a low no-load power (<1W). These devices have a Euro plug, a cable length of 180cm, ...

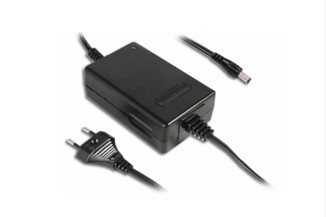

Mean Well charger series GC30E

Desktop type battery chargers in a plastic housing with 30W, protection class II, a universal input, a 2 color LED indicator and a low no-load power (<1W). These devices have a Euro plug, a cable length of 180cm, and are protected against overload, overtemperature, short circuit as well as overvoltage. We offer the following types of this Mean Well series: GC30E-0P1J, GC30E-1P1J, GC30E-2P1J, GC30E-4P1J, GC30E-5P1J, GC30E-6P1J, and GC30E-11P1J.

  • output: 16,8 to 30W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 40A
  • overload protection: 90 to 110%
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: 0 to +50°C
  • dimensions: 108x67x36mm
  • weight: 405g
> More
Data Sheet
