NW 08-3 330 R

resistor networks

• with 4 resistors and 8 pins
• power: 0.2W
• tolerance: ±5%
• single inline (SIL) housing


• operating voltage Umax.: 100V
• operating temperature range: -55...+125°C
• compact size
• high stability

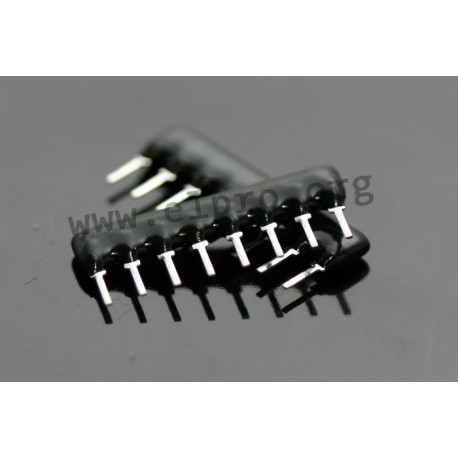

8 pins/4 resistors

NW 08-3 330 R

10116 NW 08-3 330 R RNLB08G0331B0E RNLB08G0331B0E resistor networks. • with 4 resistors and 8 pins• power: 0.2W• tolerance: ±5%• single inline (SIL) housing • operating voltage Umax.: 100V• operating temperature range: -55...+125°C• compact size• high stability

Specifications

Manufacturer's name RNLB08G0331B0E
Resistance [Ω] 330
Power [W] 0,2
Tolerance [%] 5

Unit price

0,113 €

Stock: 6179
Further delivery:
CW 21/2026

Minimum order quantity 1 to 79 units or multiples of 100 plus 0 to 79 .
