> Passive elements>Cables>Flat ribbon cables>Klasing flat cables, AWG28, rainbow-coloured, 05A069 series

Manufacturers

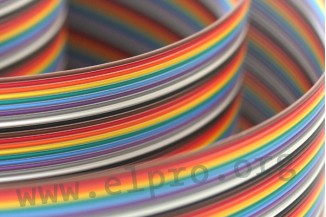

PVC flat cables

* double extruding strip cable
* solid tinned copper wire AWG28 (0.09mm²)
* pitch 1.27mm
* 10- to 64-wire
* rainbow
* PVC insulation
* self-extinguishing
* colour sequence according to IEC
* temperature range: -20 to +80°C
* rated voltage: ...

PVC flat cables

* double extruding strip cable
* solid tinned copper wire AWG28 (0.09mm²)
* pitch 1.27mm
* 10- to 64-wire
* rainbow
* PVC insulation
* self-extinguishing
* colour sequence according to IEC
* temperature range: -20 to +80°C
* rated voltage: 300V
* rated current: 1A
* test voltage: 2000V
* insulation resistance: >20MW*km
* capacitance (@1MHz): 53pF/m
* impedance: 108W
* crosstalk, near (@1MHz): 33dB
* crosstalk, far (@1MHz): 45dB

> More
Data Sheet
