> Passive elements>Resistor networks>SIL design>9 pins,8 resistors>NW 09-1 10 k

Manufacturers

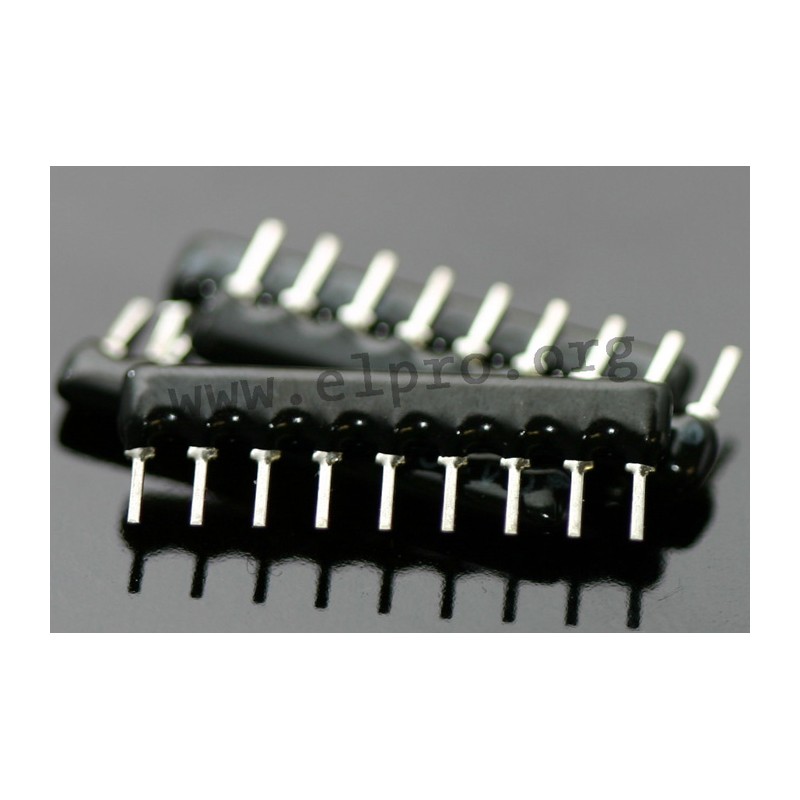

NW 09-1 10 k

resistor networks

• with 8 resistors and 9 pins
• power: 0.125W
• tolerance: ±5%
• single inline (SIL) housing


• operating voltage Umax.: 100V
• operating temperature range: -55...+125°C
• compact size
• high stability

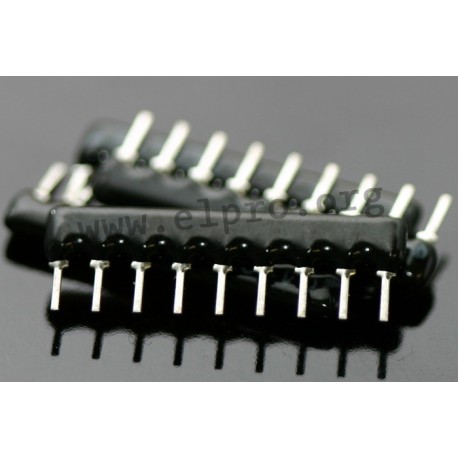

9 pins/8 resistors

NW 09-1 10 k

10143 NW 09-1 10 k RNLA09G0103B0E RNLA09G0103B0E resistor networks. • with 8 resistors and 9 pins• power: 0.125W• tolerance: ±5%• single inline (SIL) housing • operating voltage Umax.: 100V• operating temperature range: -55...+125°C• compact size• high stability

Specifications

Manufacturer's name RNLA09G0103B0E
Resistance [Ω] 10k
Power [W] 0,125
Tolerance [%] 5

Unit price

0,117 €

Stock: 0
Next incoming goods:
CW 11/2026
9900 units

Further delivery:
CW 23/2026

Minimum order quantity 100 units or
multiples of 100.
