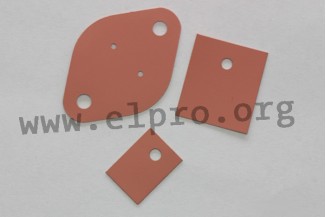

Kunze thermo-silicone insulator series KU-CG30

  • salmon-coloured thermo-silcone insulators with a high thermal conductance
  • mechanical stability due to reinforced glass fiber
  • very flexible
  • a heat conductor paste is not necessary
  • flammability class: U...

Kunze thermo-silicone insulator series KU-CG30

  • salmon-coloured thermo-silcone insulators with a high thermal conductance
  • mechanical stability due to reinforced glass fiber
  • very flexible
  • a heat conductor paste is not necessary
  • flammability class: UL94V-0
  • filling: heat conductive ceramic
  • material thickness: 0.3mm ±0,05
  • thermal conductance: 1,9W/mK
  • thermal resistance (at approx. 1.3MPa): 0.45°C/W
  • dielectric voltage (voltage ramp 1000V/s): 7000V AC
  • operating temperature: -60 to +200°C
> More
Showing 1 - 4 of 4 products
  • Product Stock Unit price Volume discounts
  • Kunze
    WS für TO 3
    0,745 €
    28417 WS für TO 3 KU-CG30-0H-ST-6-619-L KU-CG30-0H-ST-6-619-L
    0,745 €
    Stock: 773
  • Kunze
    WS for TO220
    0,118 €
    12228 WS für TO 220 KU-CG30-0H-ST-6-623-L KU-CG30-0H-ST-6-623-L
    0,118 €
    Stock: 91956
  • Kunze
    WS für TO 218
    0,17 €
    39431 WS für TO 218 KU-CG30-0H-ST-6-631-L KU-CG30-0H-ST-6-631-L
    0,17 €
    Stock: 6120
  • Kunze
    WS for TOP3
    0,217 €
    12229 WS für TOP 3 KU-CG30-0H-ST-6-624-L KU-CG30-0H-ST-6-624-L
    0,217 €
    Stock: 11556
Showing 1 - 4 of 4 products
