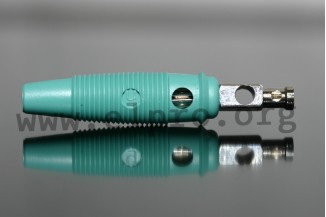

multiple spring wire plugs, 4mm system

BÜLA
* by Hirschmann
* contact: spring-loaded pin (4mm)
* shatter-proof, flexible insulated sleeve with transverse hole
* the tapering sleeve end also serves as kinking protection for the lead
* contact material: ...

multiple spring wire plugs, 4mm system

BÜLA
* by Hirschmann
* contact: spring-loaded pin (4mm)
* shatter-proof, flexible insulated sleeve with transverse hole
* the tapering sleeve end also serves as kinking protection for the lead
* contact material: brass, nickel-plated
* housing: PCV-P (UL 94 V-2)
* operating temperature range: -25...+70°C

BÜLA 20 K
* screw connection up to max. cable cross section of 1.5mm²
* rated voltage: 60V DC
* rated current: 16A
* contact resistance: 3mΩ

BÜLA 30 K
* soldering connection up to max. cable cross section of 2.5mm²
* rated voltage: 60V DC
* rated current: 30A
* contact resistance: 3mΩ

BÜLA 300 K
* soldering connection up to max. cable cross section of 2.5mm²
* lateral supports provide protection against contact when plugged in at right angles
* rated voltage: 60V DC
* rated current: 30A
* contact resistance: 3mΩ


BSB 300
* by Hirschmann
* contact: 4mm (spring-loaded) pin, socket
* with coupling located parallel to the connector pin
* th plugs can be connected together without shorting
* solder connection up to max. cable cross section of 1.5mm²
* contact material: brass, nickel-plated
* housing: polypropylene (UL 94 V-2)
* rated voltage: 60V DC
* rated current: 16A
* contact resistance: 3mΩ
* operating temperature range: -25...+100°C
