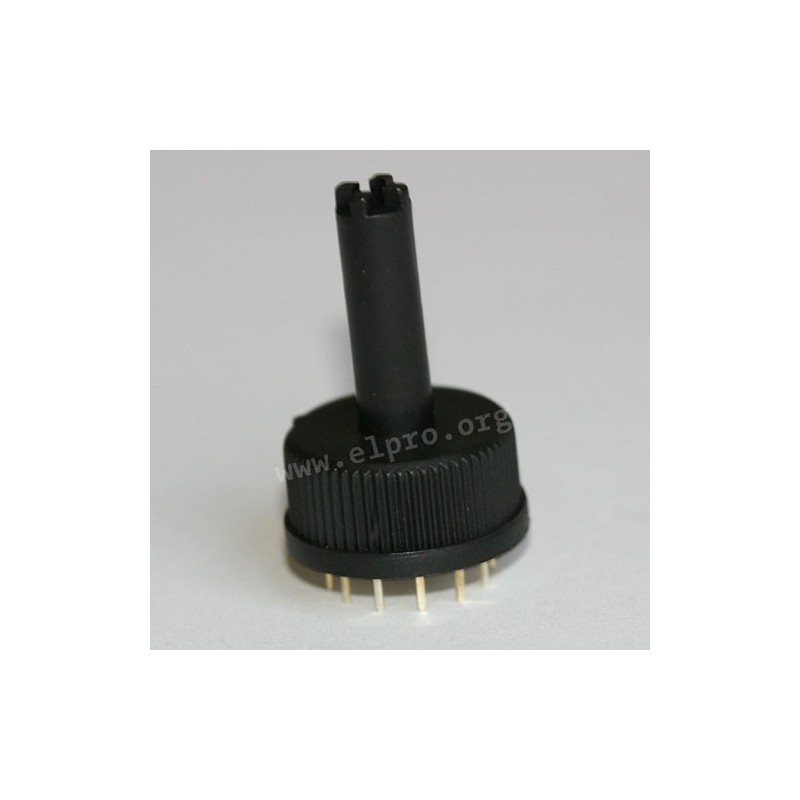

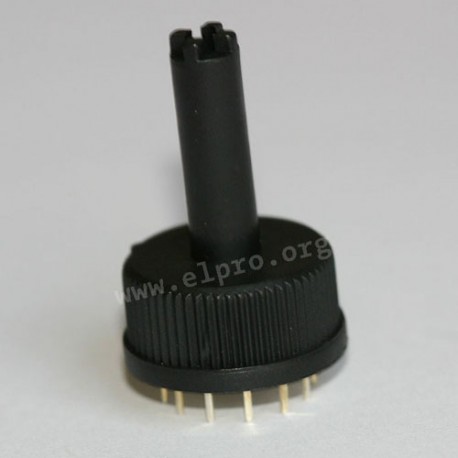

DSS 12

6mm plastic axis

• switching capacity, max.: 5VA
• switching voltage, max. (AC/DC): 150V
• switching current, max.: 130mA
• non-operative current at TU = 20°C: 3A
• test voltage: 1000V
• contact resistance new value, max.: 25mΩ
• contact resistance >15000 switching operations, max.: 50mΩ
• insulation resistance: 1x109Ω
• capacitance between two contacts, max.: 3pF
• switching mode: non-shorting
• actuating force: 2...4.5Ncm
• operating life at max. switching capacity, min. 15000 switching
• insulation material: plastic
• contacts: Cu alloy, silver-plating
• switching angle: 30°

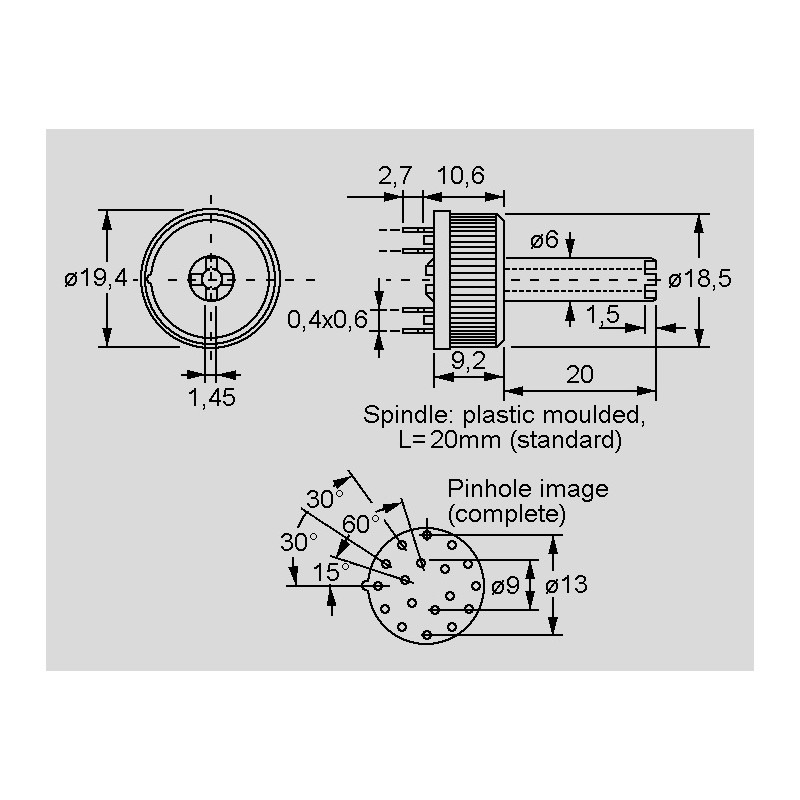

• housing height encasing lock mechanism: 10.6mm
• shaft length: 20mm

• 1-pole, 12 positions

DSS 12

13211 DSS 12 9341900117 9341900117 6mm plastic axis. • switching capacity, max.: 5VA• switching voltage, max. (AC/DC): 150V• switching current, max.: 130mA• non-operative current at TU = 20°C: 3A• test voltage: 1000V• contact resistance new value, max.: 25mΩ• contact resistance >15000 switching operations, max.: 50mΩ• insulation resistance: 1x109Ω• capacitance between two contacts, max.: 3pF• switching mode: non-shorting• actuating force: 2...4.5Ncm• operating life at max. switching capacity, min. 15000 switching• insulation material: plastic• contacts: Cu alloy, silver-plating• switching angle: 30°• housing height encasing lock mechanism: 10.6mm• shaft length: 20mm• 1-pole, 12 positions

Specifications

manufacturer
Manufacturer's name 9341900117
Data Sheet

Unit price

5,19 €

Stock: 120
Further delivery:
CW 26/2024

Minimum order quantity 5 units or
multiples of 5.
