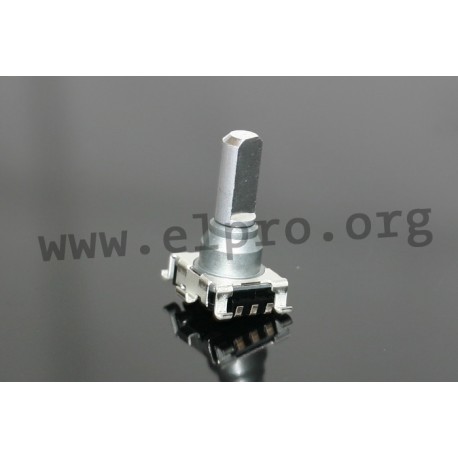

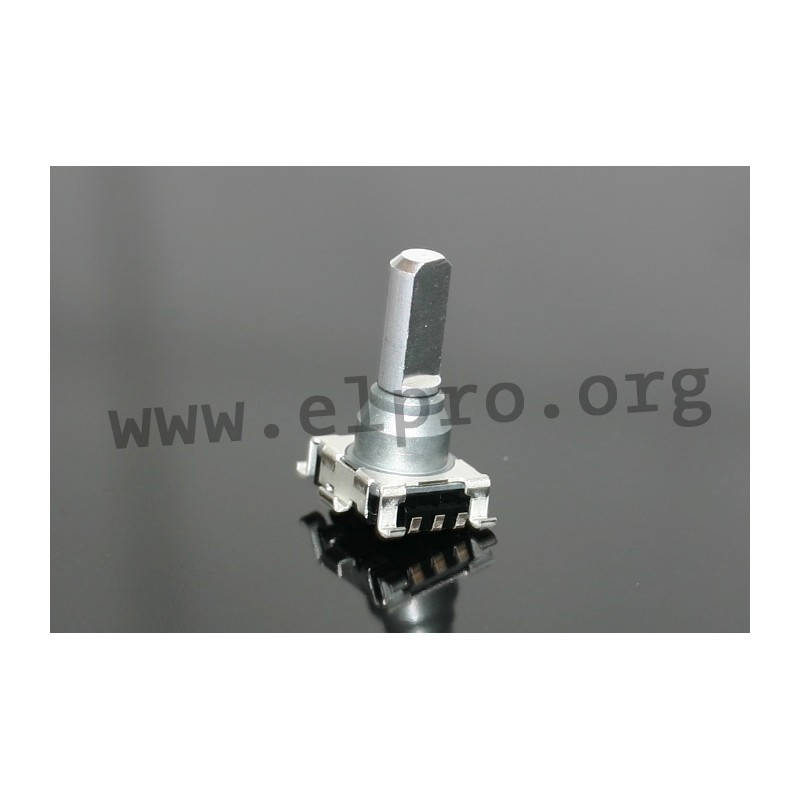

EC11J1520601

ALPS potentiometer series EC11 and EC12

  • vertical type incremental encoders
  • with a Ø6mm plastic (EC12_) resp. metal shaft (EC11_)
  • suitable for SMD or THT mounting
  • partly with a push-on switch (EC11E15244G1/EC12D1564402)
  • rotation angle: 360° (mechanical)
  • rated voltage: 5VDC

EC11J1520601

33177 EC11J1520601 EC11J1520601 ALPS potentiometer series EC11 and EC12. vertical type incremental encoders with a Ø6mm plastic (EC12_) resp. metal shaft (EC11_)  suitable for SMD or THT mounting  partly with a push-on switch (EC11E15244G1/EC12D1564402)  rotation angle: 360° (mechanical) rated voltage: 5VDC

Discontinued items. Only remainder of stock available.

Specifications

Design SMD
Operating temperature range [°C] -40...+85
Starting rated current [mA] 10
Features without switch
Number of detend 30
Number of pulse 15
Data Sheet

Unit price

2,87 €

Stock: 4
