WNX 4

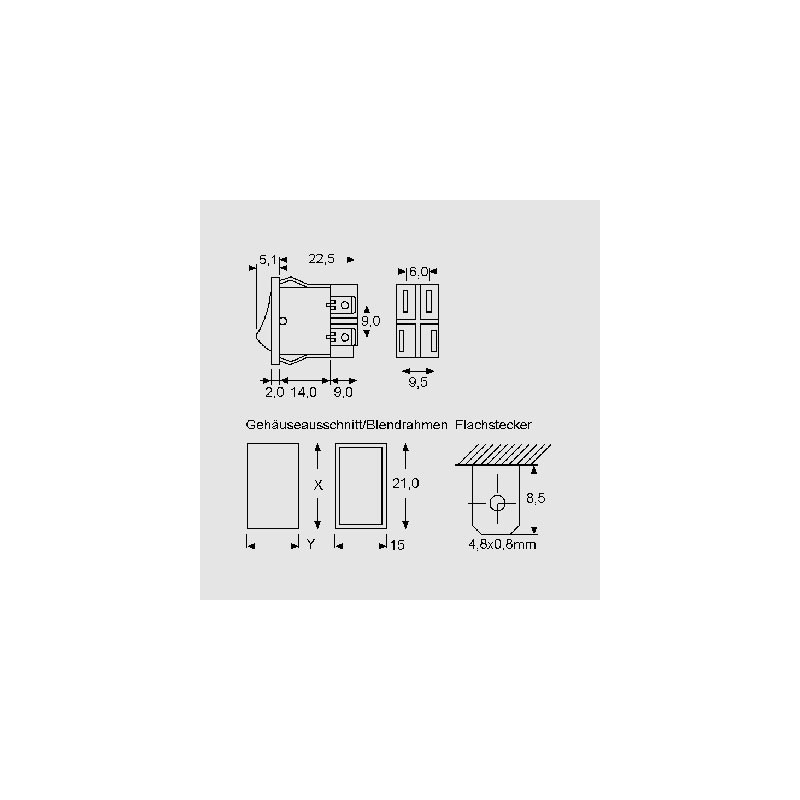

for 13x19mm panel cutout

• 1 and 2-pole design
• with connector 4.8x0.8mm
• max. 250V AC operating voltage
• max. 10 A switching current
• max. 6 A switching current at inductive load
• inrush current (EN61058-1): 85A
• max. ambient temperature: 125°C
• insulation resistance: >20MΩ
• contact resistance (new state, 12V DC/1A): <100mΩ
• contact gap: 3mm
• soldering conditions (hand soldering): 350°C/6s
• material of shell and rocker: nylon 6.6
• material of current-carrying part: Cu alloy
• contacts: silver-plated
• flammability class: UL94V2

suitable protective caps: WNX 15

WNX 3

WNX 4

13390 WNX 4 H8550VBACA H8550VBACA for 13x19mm panel cutout. • 1 and 2-pole design• with connector 4.8x0.8mm• max. 250V AC operating voltage• max. 10 A switching current• max. 6 A switching current at inductive load• inrush current (EN61058-1): 85A• max. ambient temperature: 125°C • insulation resistance: &gt;20MΩ• contact resistance (new state, 12V DC/1A): &lt;100mΩ• contact gap: 3mm• soldering conditions (hand soldering): 350°C/6s• material of shell and rocker: nylon 6.6• material of current-carrying part: Cu alloy• contacts: silver-plated• flammability class: UL94V2 suitable protective caps: WNX 15

Specifications

manufacturer
Manufacturer's name H8550VBACA

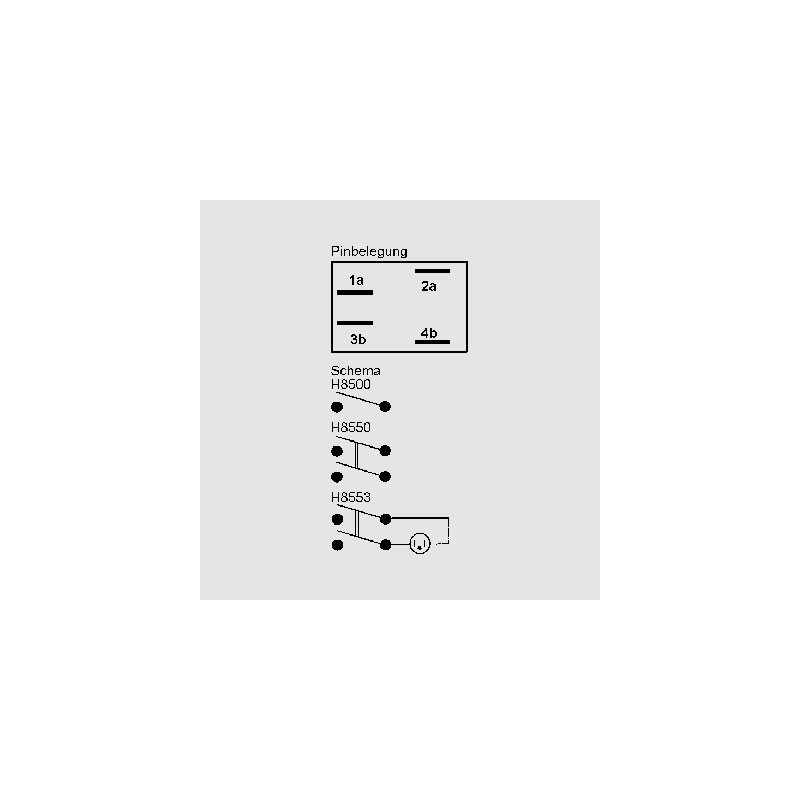

Switch positions 2x ON-OFF
Case colour black
Rocker black
Illuminated no
Rocker imprint I/O
Switching current [A] 10
Panel cut-out [mm] 13 x 19
Data Sheet

Unit price

2,29 €

Stock: 7
Next incoming goods:
CW 29/2024
3440 units

Further delivery:
CW 35/2024

Minimum order quantity 1 to 7 units or multiples of 10 plus 0 to 7 .
