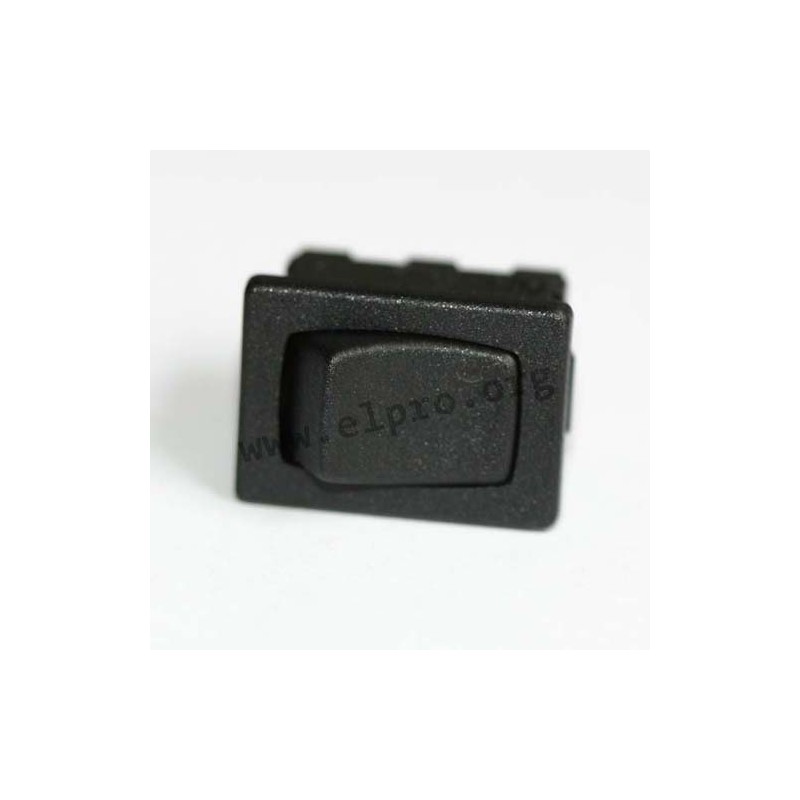

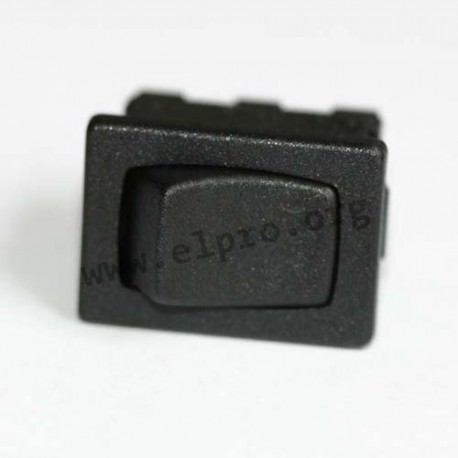

WNX 7

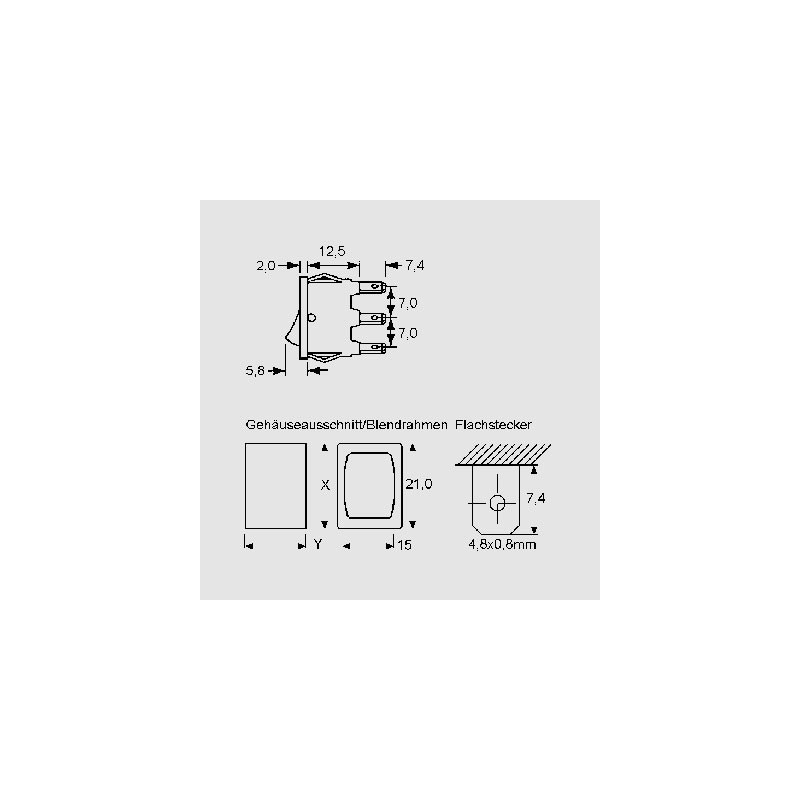

for 13x19mm housing cutout

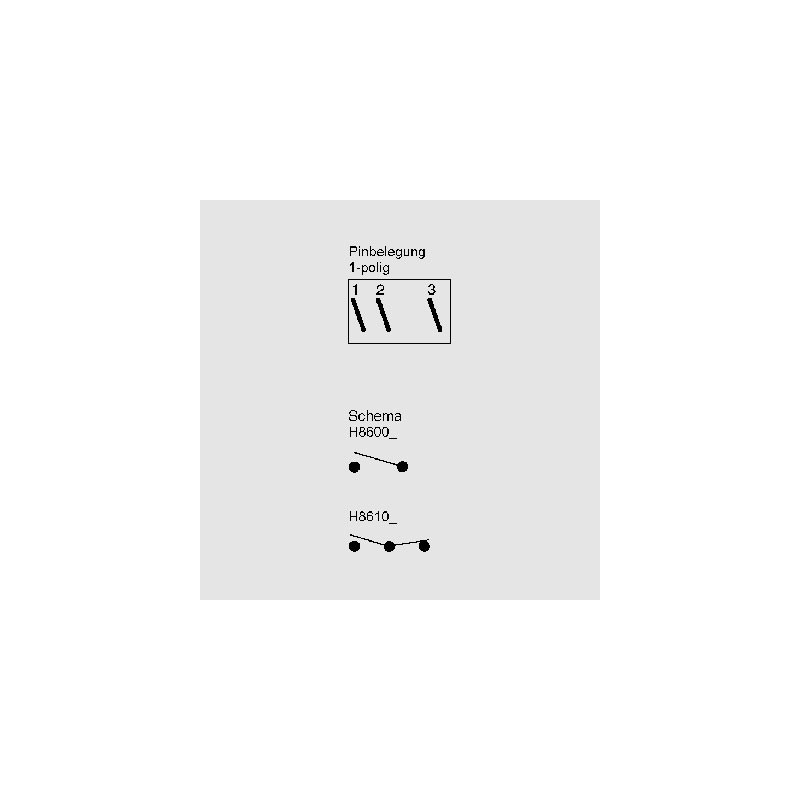

• 1-pole version
• with connector 4,8x0,8mm
• operating voltage, max.: 250V AC
• switching current, max.: 10A
• switching current at inductive load, max.: 4A
• inrush current (EN61058-1): 25A
• insulation resistance: >20MΩ
• contact resistance
(New State, 12V DC/1A): <100mΩ
contact opening width: <3mm
• soldering conditions (hand solder): 350°C/6s
• materials
shell and rocker: nylon 6.6
current-carrying part: Cu alloy
• contacts: silver-plated
• flammability class: UL94V2

suitable protecting caps: WNX 15

WNX 7

WNX 7

13406 WNX 7 H8600VBAAA H8600VBAAA for 13x19mm housing cutout. • 1-pole version• with connector 4,8x0,8mm• operating voltage, max.: 250V AC• switching current, max.: 10A• switching current at inductive load, max.: 4A• inrush current (EN61058-1): 25A• insulation resistance: &gt;20MΩ• contact resistance(New State, 12V DC/1A): &lt;100mΩcontact opening width: &lt;3mm• soldering conditions (hand solder): 350°C/6s• materialsshell and rocker: nylon 6.6current-carrying part: Cu alloy• contacts: silver-plated• flammability class: UL94V2suitable protecting caps: WNX 15

Specifications

manufacturer
Manufacturer's name H8600VBAAA
Switch positions ON - OFF
Case colour black
Rocker black
Rocker imprint -
Switching current [A] 10
Panel cut-out [mm] 13 x 19
Data Sheet

Unit price

1,17 €

Stock: 765
Further delivery:
CW 38/2024

Minimum order quantity 1 to 5 units or multiples of 10 plus 0 to 5 .
