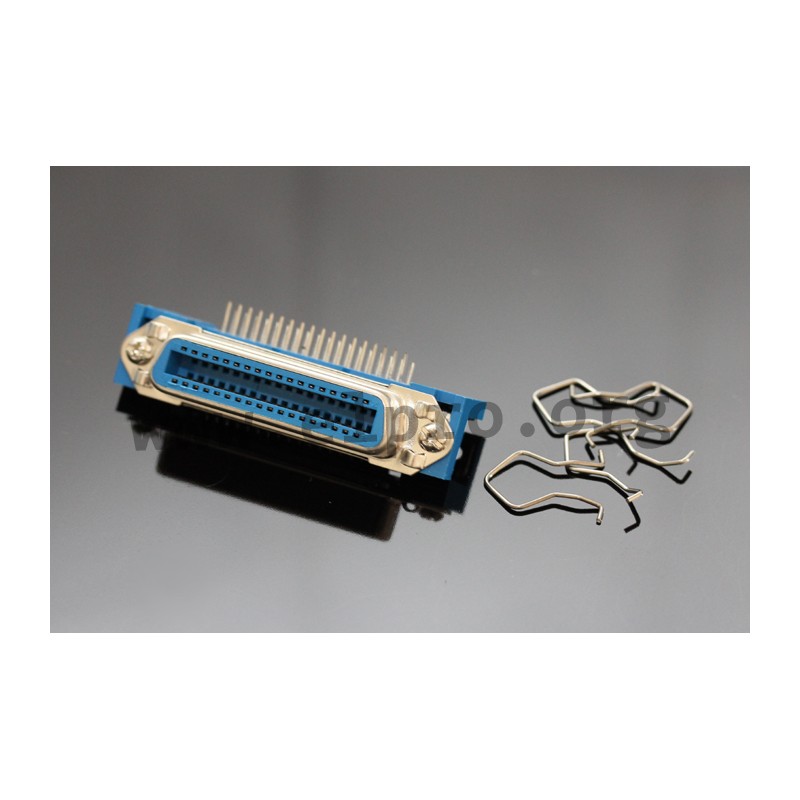

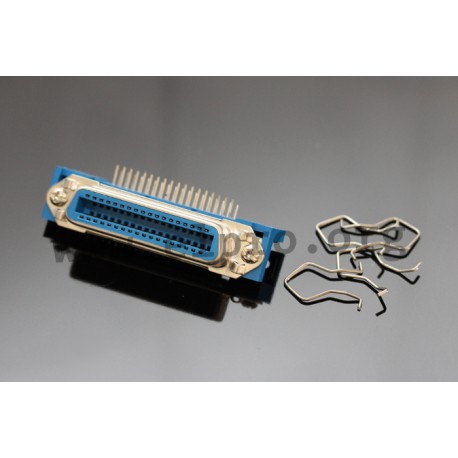

SE 5750 FRKL

Centronic sockets

* insulation shell: PBT, glass-filled, UL94V-0
* contact material: phosphor bronze
* housing: steel
* operating current: 5A
* dielectric strength (for 1 min.): 1000V AC
* insulation resistance (at 500V DC), min.: 1000MΩ
* operating temperature: -55...+105°C

SE 5750 FRKL

SE 5750 FRKL

11821 SE 5750 FRKL A-57/50 FR/KL A-57/50 FR/KL Centronic sockets. * insulation shell: PBT, glass-filled, UL94V-0* contact material: phosphor bronze* housing: steel* operating current: 5A* dielectric strength (for 1 min.): 1000V AC* insulation resistance (at 500V DC), min.: 1000MΩ* operating temperature: -55...+105°C

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name A-57/50 FR/KL

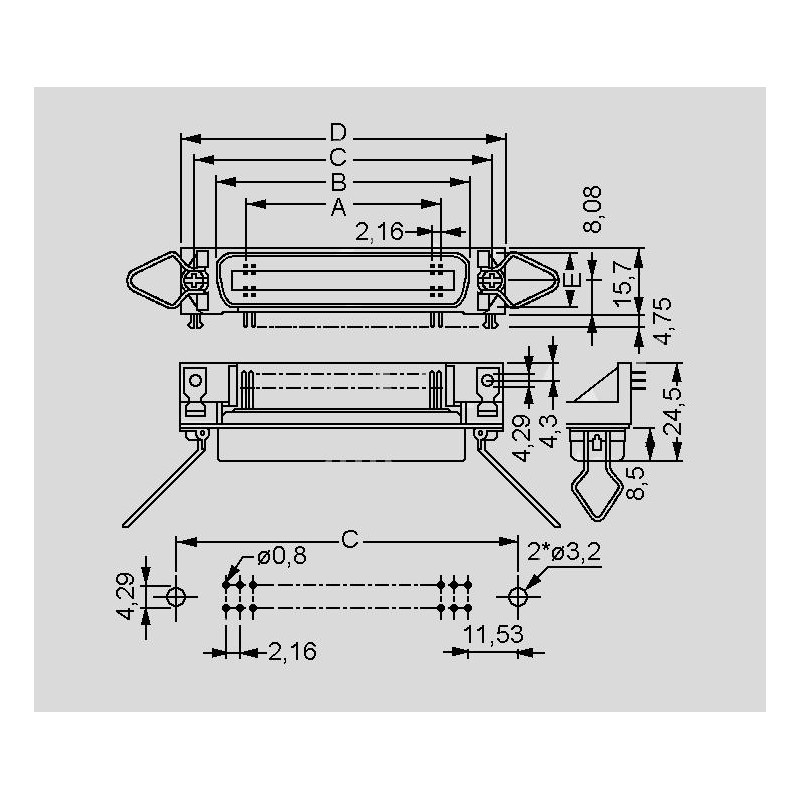

E [mm] 11,9mm
Number of poles 50
A [mm] 52
Width [mm] 64,1
E [mm] 11,9
D [mm] 83
C [mm] 75
