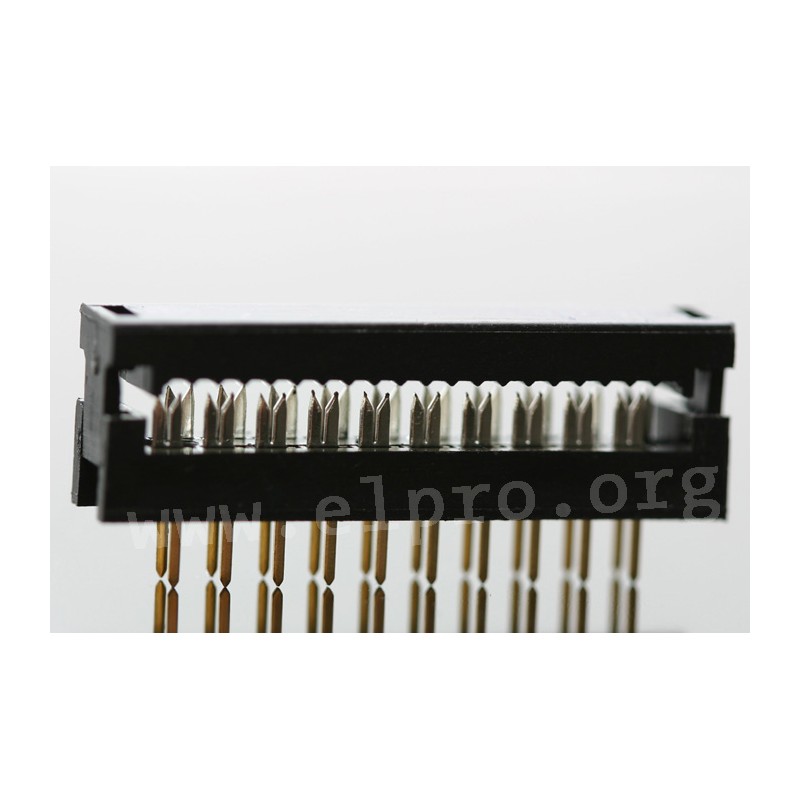

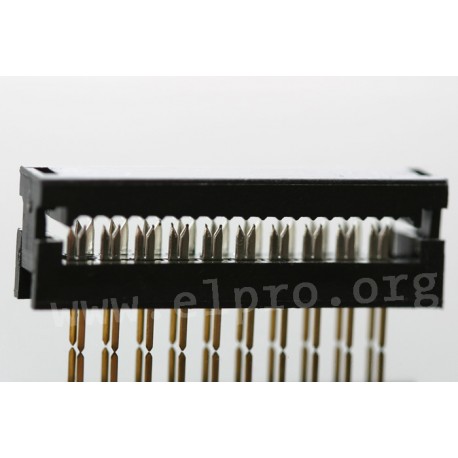

AWLP 34

PC-connectors for flat cables

• pitch: 2.54mm
• insulation body: PBT, glass filled (UL94V-0)
• contact material: brass
• contact surface: tin over nickel
• rated current: 1A
• test voltage: 500V AC
• insulation resistance (500V): 1000MΩ
• temperature range: -40...+105°C

suitable female headers

AWLP 34

7151 AWLP 34 AWLP 34/3,2-T AWLP 34/3,2-T PC-connectors for flat cables. • pitch: 2.54mm• insulation body: PBT, glass filled (UL94V-0)• contact material: brass• contact surface: tin over nickel• rated current: 1A• test voltage: 500V AC• insulation resistance (500V): 1000MΩ• temperature range: -40...+105°Csuitable female headers

Specifications

manufacturer
Manufacturer's name AWLP 34/3,2-T
Number of poles 34

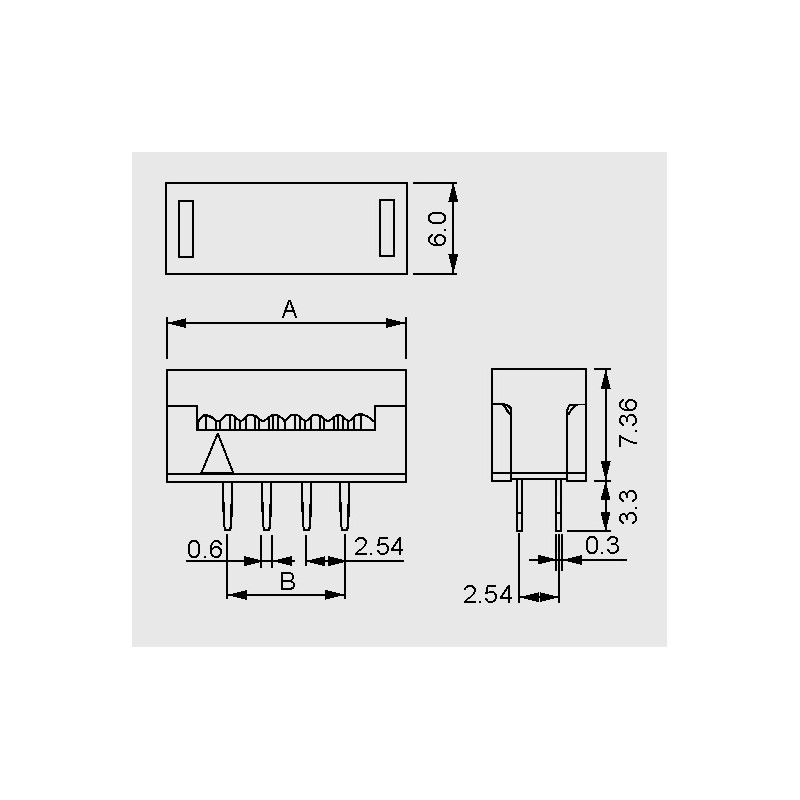

A [mm] 48,58
Width [mm] 40,64

Unit price

0,409 €

Stock: 820
Further delivery:
CW 32/2024

Minimum order quantity 10 units or
multiples of 10.
