MY 214 T

PVC microphone and power cables

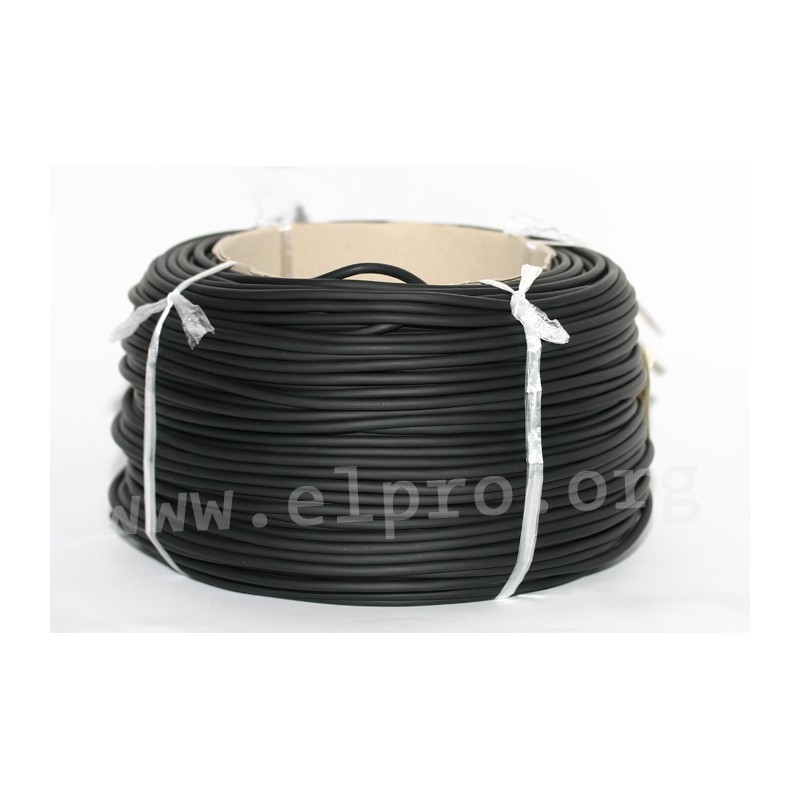

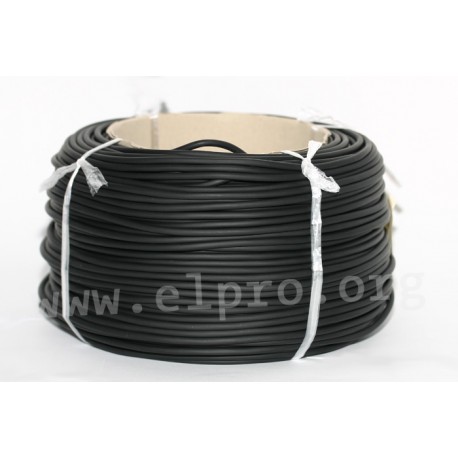

Black coaxial PVC microphone and power cables on a 100-meter ring in a coaxial design. These bare copper strands in a black PVC jacket have a shield made of bare braided copper wires. We offer various types of this series.

  • rated voltage: 50V AC/75V DC
  • temperature range: -5 to +70°C
  • delivery quantity: 100-meter ring
  • price corresponds to one meter
MY 214 T

MY 214 T

16415 MY 214 T 04018044/02 04018044/02 PVC microphone and power cables. Black coaxial PVC microphone and power cables on a 100-meter ring in a coaxial design. These bare copper strands in a black PVC jacket have a shield made of bare braided copper wires. We offer various types of this series. rated voltage: 50V AC/75V DC temperature range: -5 to +70°C delivery quantity: 100-meter ring price corresponds to one meter

Specifications

manufacturer
Manufacturer's name 04018044/02
Conductor cross-section [mm²] 2x0,14
Colour black
Conductor construction [mm] 18x0,1
RLeiter [Ω/km] 135
Outer diameter [mm] 4
Rl [MΩ/km] 100

Unit price

0,685 €

Stock: 1800
Further delivery:
CW 06/2026

Minimum order quantity 100 units or
multiples of 100.
